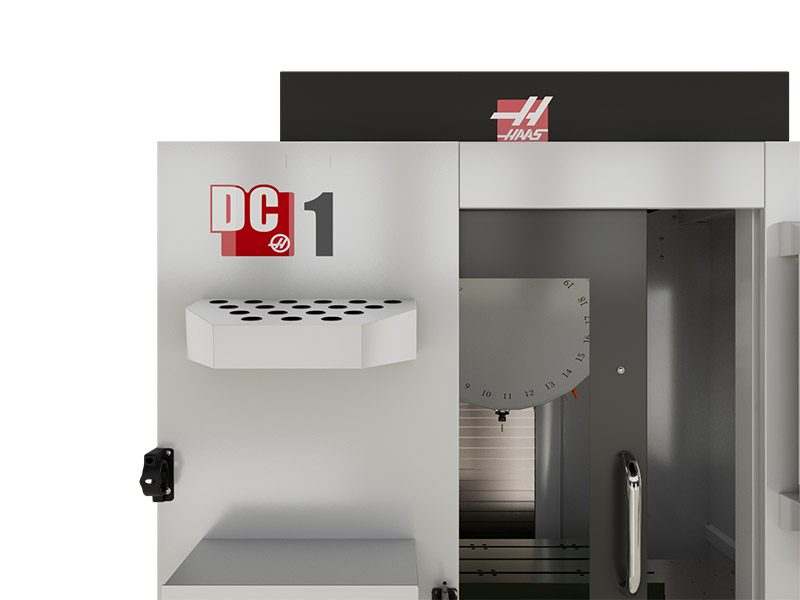

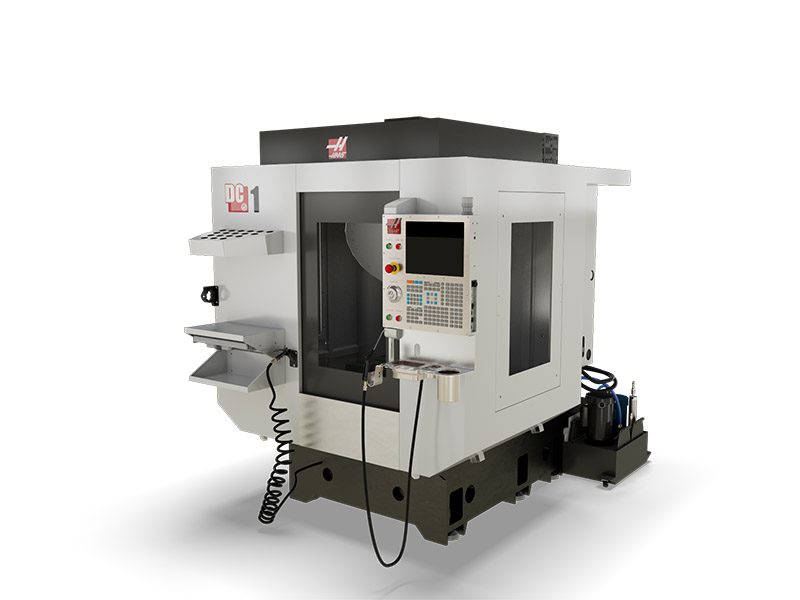

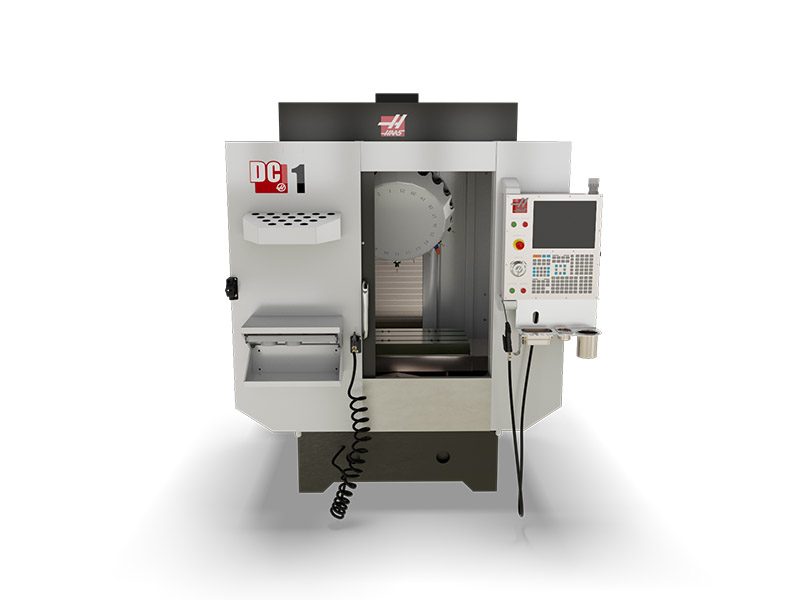

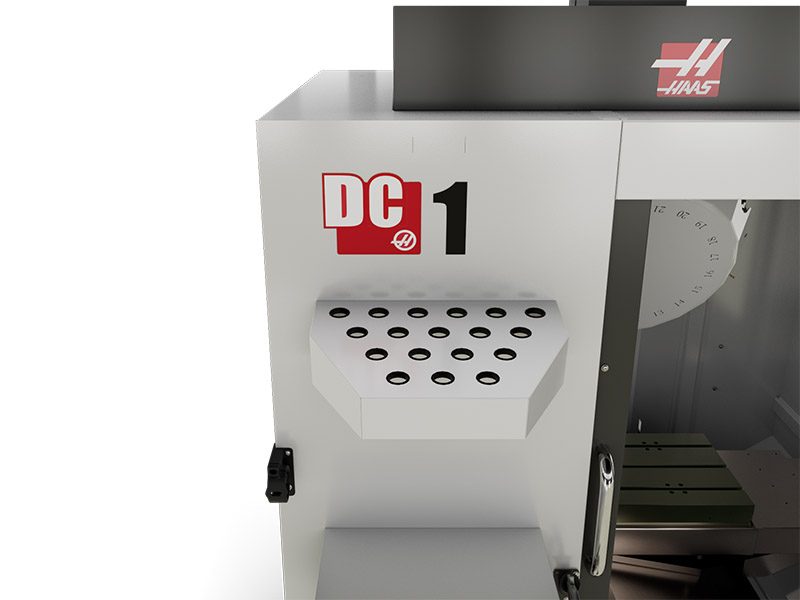

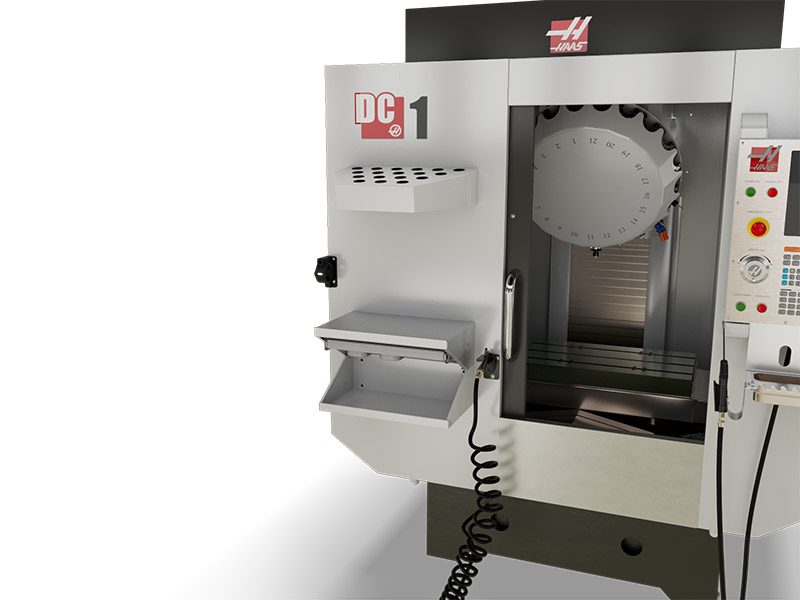

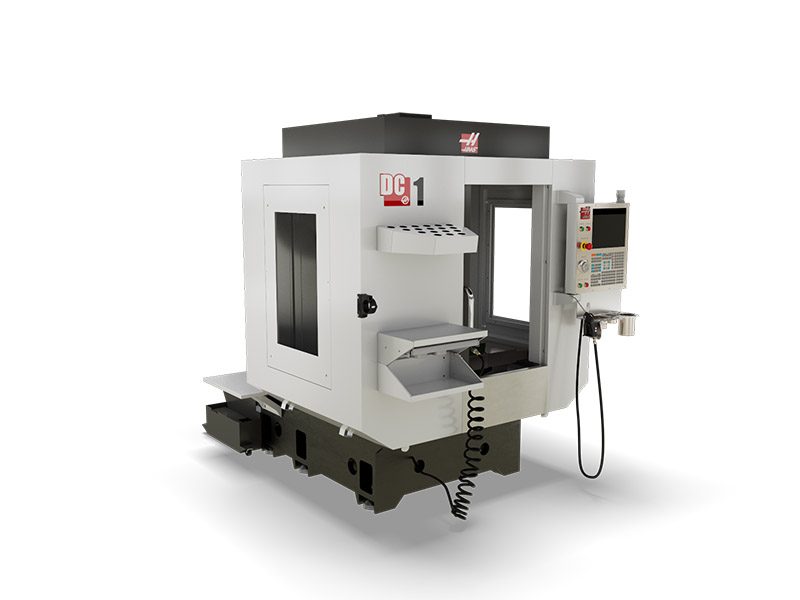

DC-1 Drill Center


High-Speed Drill Center with 23.6" x 17.7" x 13" travels, 30 taper
  • 10,000-rpm BT30 spindle (15,000-rpm or 20,000-rpm available)
  • High-speed turret-style tool changer, 21 tools
  • Available auto window for easy automation
  • Rear chip discharge with front chip flush
  • Compact footprint

The DC-1 is a traditional-style drill/tap machine with a 10,000-rpm BT30 spindle and high-speed turret-style tool changer to minimize cut-to-cut times and shorten cycle times. Choose the optional 15,000-rpm or 20,000-rpm spindle to cut production times even further.

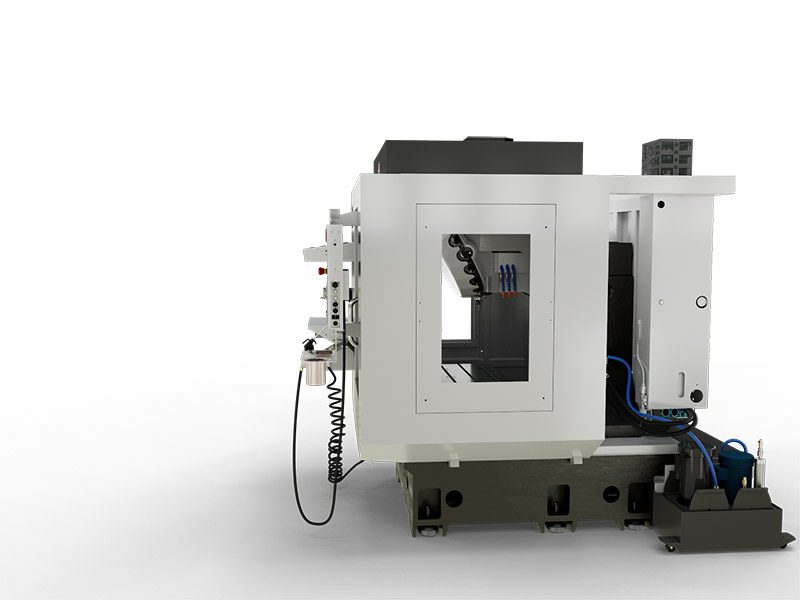

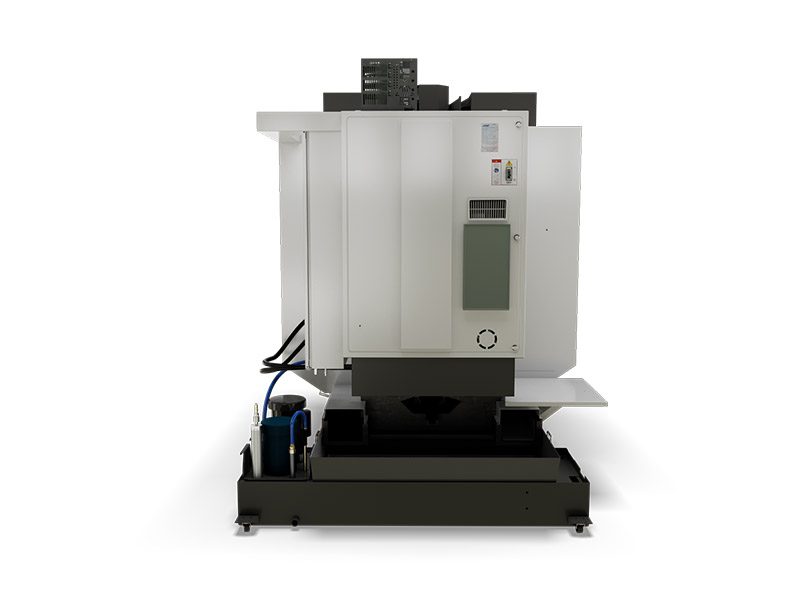

The compact footprint and rear chip discharge of the DC-1 allow machines to be placed side-by-side to maximize floor space, and provide easy side access for automation systems. The machine’s one-piece, extra-wide base provides stable support for heavier parts and fixtures, and the wide-stance triangulated column increases overall rigidity.

NOTE: The DC-1 has 14 mm T-slots. T-slot hardware and toe clamp kits are available from HaasTooling.com.

  • 30 Taper
  • 3 Axis
  • 10k RPM
  • 21 Tool Capacity

美元价格不包括关税、报关费用、保险费、增值税及运费。
USD prices DO NOT include customs duty, customs fees, insurance, VAT, or freight.

人民币价格包含关税、报关费用、货运保险和增值税, 但不包括运费。
CNY prices include customs duty, customs fees, insurance, and VAT. DOES NOT include freight.

* V Model Machines are only available in CNY pricing

HAAS HIGH-SPEED DRILL CENTERS

30-TAPER | 40-TAPER | TURRET-STYLE TOOL CHANGER | 10,000-20,000 RPM

DOWNLOAD BROCHURE
Compare Machines
BUILD & PRICE
Contact Distributor

Series Info

AVAILABLE OPTIONS

TECHNICAL DOCUMENTS

VIDEOS

RELATED PRODUCTS

Speed | Precision | Versatility

Haas DC Series drill centers that combine high-speed capabilities and space-saving footprints to create versatile vertical machining centers suitable for producing high-precision 2D and 3D parts, such as those found in the communications, aerospace, medical, and automotive industries. Deploy a single machine for fast-turnaround high-mix work, or install multiple machines side-by-side for high-volume production.

30 / 40

TAPER

3/4/5

AXIS

10,000 – 20,000

RPM

20 - 21

TOOL CAPACITY

TRADITIONAL FORMAT, PROVEN HAAS VALUE

✓  High-speed turret-style tool changer


✓  Rear chip discharge and coolant chip flush


✓  Automation ready – Cobot



✓  User-friendly Haas control



✓  High-performance spindles



✓  Easy 4th- and 5th-axis integration



VIEW DETAILS

    HIGH-SPEED DRILL CENTERS – 30 TAPER

    Haas DC-1

    DC-1 Drill Center

    High-Speed Drill Center with 23.6" x 17.7" x 13" travels, 30 taper


    Learn More
    Haas DC-2

    DC-2 Drill Center

    High-Speed Drill Center with 39.4" x 19.7" x 13" travels, 30 taper


    Learn More

    HIGH-SPEED DRILL CENTERS – 40 TAPER

    Haas DC-1

    DC-1/40 Drill Center

    High-Speed Drill Center with 23.6" x 17.7" x 11.8" travels, 40 taper


    Learn More
    Haas DC-2

    DC-2/40 Drill Center

    High-Speed Drill Center with 39.4" x 19.7" x 19.7" travels, 40 taper


    Learn More

    LONG-PART DRILL CENTERS – 40 TAPER

    Haas DC-3/40

    DC-3/40 Drill Center

    High-Speed Drill Center with 78.7" x 19.7" x 11.8" travels, 40 taper


    Learn More
    Haas DC-4/40

    DC-4/40 Drill Center

    High-Speed Drill Center with 98.4" x 19.7" x 11.8" travels, 40 taper


    Learn More

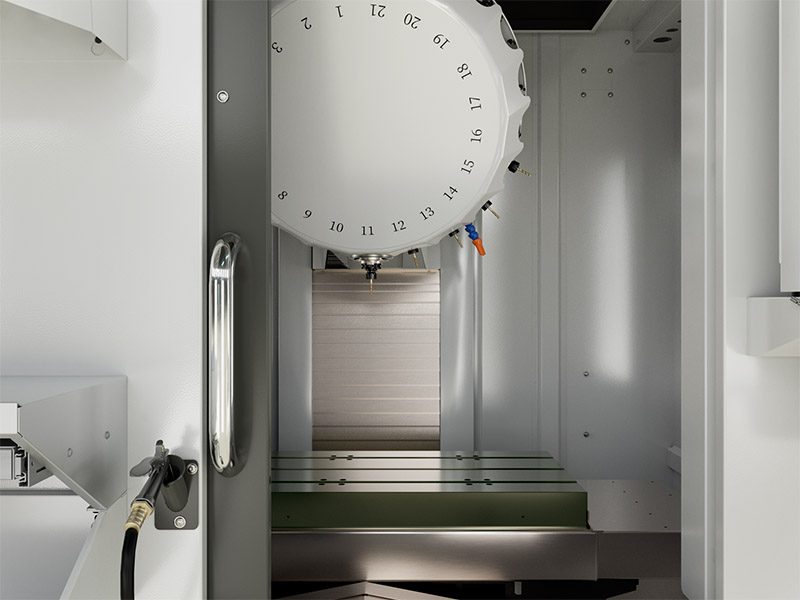

    TURRET-STYLE TOOL CHANGER

    The ultra-fast, turret-style tool changers on the DC series machines yield tool-to-tool times as fast as 1.25 seconds, and chip-to-chip times as fast as 2.25 seconds to minimize cut-to-cut times and shorten cycle times. The 30-taper tool changer holds 21 tools, and the 40-taper tool changer holds 20 tools. Both feature a powerful servo drive system for speed and reliability.



    HIGH-PERFORMANCE SPINDLES

    All DC series machines are equipped with a high-performance grease-packed spindle powered by a reliable Haas inline direct-drive system. The spindle cartridge is liquid cooled for thermal stability. The Haas inline direct-drive system provides high accel/decel rates to minimize cut-to-cut times, and allows high-speed rigid tapping  to reduce cycle times.

    30 TAPER: 10,000 rpm | 15,000 rpm | 20,000 rpm
    40 TAPER: 12,000 rpm | 15,000 rpm

    HAAS CONTROL

    Haas DC Series machines are equipped with the same powerful, easy-to-use Haas Control found on every machine we build. Designed and built in-house – hardware and software – the Haas control is optimized specifically for Haas machine tools. It comes standard on every machine we sell, and is the same across the entire product line. The Haas control is fast, smart, and powerful, with a simple user interface and consistent, intuitive navigation that make it easy to learn and use. With more than 300,000 Haas controls in use worldwide, it clearly is an industry standard.

    Standard Features:

    ■ Touchscreen Interface
    ■ Dedicated Keypad
    ■     One-Button Features
    ■ Multi-Function Jog Handle
    ■ Color LCD Screen
    ■ Ethernet Interface
    ■ USB Port
    ■ M130 Media Player

    ■ Advanced Tool Management
    ■ 1 GB Program Memory
    ■ Power-Failure Detection
    ■ HaasConnect Mobile Monitoring
    ■ WiFi Connectivity
    ■ Safe Run
    ■ Surge Protection
    ■ HaasDrop Wireless File Transfer

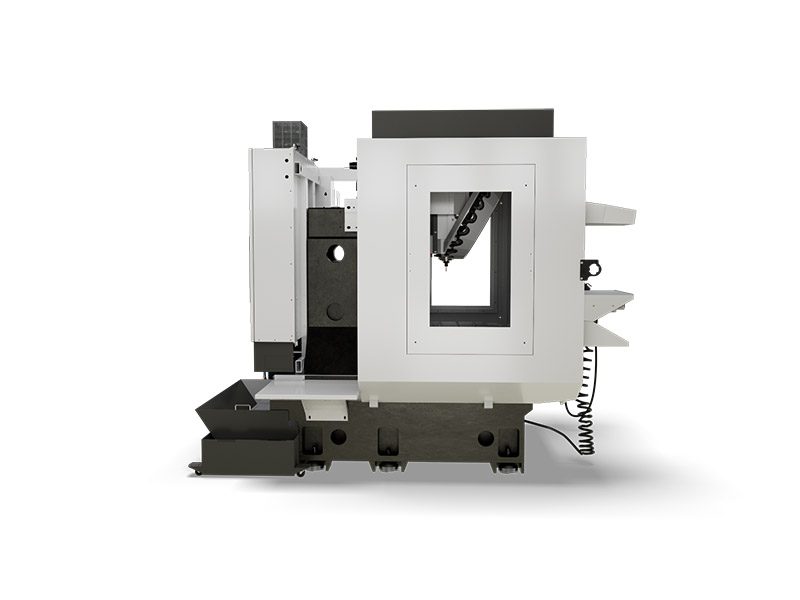

    COOLANT FLUSH & REAR CHIP DISCHARGE

    Steeply sloped waycovers and angled internal sheet metal funnel chips into the side troughs, and powerful front washdown nozzles flush them to the rear of the machine.

    Rear chip discharge allows machines to be placed side-by-side to maximize shop space, and provides easy side access for automation systems.

    AUTOMATION READY

    Take the productivity of your DC series machine to the next level by adding one of our fully integrated automation systems – like the Haas HC10 Cobot system. These systems connect directly to the machine, and operate seamlessly from the Haas control for fast, easy unattended machining.

    VIEW COBOT

    EASY ROTARY INTEGRATION

    Haas rotaries have been the industry standard for more than 40 years, and all Haas rotary products offer seamless integration with Haas machines. Simply add the optional 4th- and 5th-axis drives to the DC Series machines for easy, plug-and-play connectivity to Haas single- and dual-axis rotaries.

    HA5CS
    5C Collet Size
    725 °/sec Max Speed
    20 ft-lb Max Torque

    VIEW INDEXERS

    HRT160SS
    160 mm Platter Size
    500 °/sec Max Speed
    110 ft-lb Max Torque

    VIEW ROTARY TABLES

    TRT160
    160 mm Platter Size
    104 °/sec Max Speed
    112 ft-lb Max Torque

    VIEW 5-AXIS ROTARIES
    Travels S.A.E METRIC
    X Axis 23.60 in 600 mm
    Y Axis 17.70 in 450 mm
    Z Axis 13.00 in 330 mm
    Spindle Nose to Table (~ max) 18.9 in 480 mm
    Spindle Nose to Table (~ min) 5.9 in 150 mm
    Spindle S.A.E METRIC
    Max Rating 15.0 hp 11.2 kW
    Max Speed 10000 rpm 10000 rpm
    Max Torque 14.0 ft-lbf @ 2500 rpm 19.0 Nm @ 2500 rpm
    Drive System Inline Direct-Drive Inline Direct-Drive
    Taper BT30 BT30
    Bearing Lubrication Grease Packed Grease Packed
    Cooling Liquid Cooled Liquid Cooled

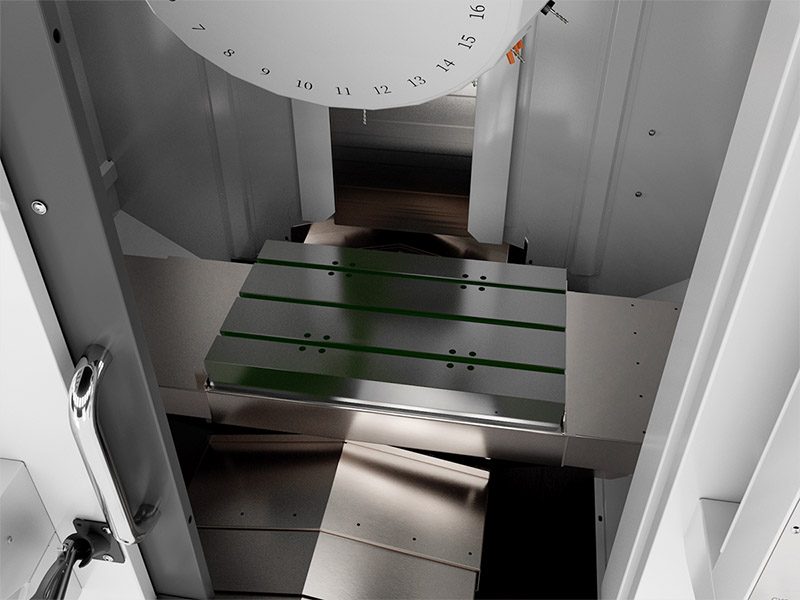

    Table S.A.E METRIC
    Length 27.6 in 700 mm
    Width 16.5 in 420 mm
    T-Slot Width 0.550 in 14 mm
    T-Slot Center Distance 4.92 in 125 mm
    Number of Std T-Slots 3 3
    Max Weight on Table (evenly distributed) 550 lb 250 kg
    Feedrates S.A.E METRIC
    Max Cutting 1200 ipm 30.5 m/min
    Rapids on X 1890 ipm 48.0 m/min
    Rapids on Y 1890 ipm 48.0 m/min
    Rapids on Z 1890 ipm 48.0 m/min
    Axis Motors S.A.E METRIC
    Max Thrust X 2054 lbf 9137 N
    Max Thrust Y 2054 lbf 9137 N
    Max Thrust Z 2054 lbf 9137 N
    Tool Changer S.A.E METRIC
    Type Turret Turret
    Capacity 21 21
    Max Tool Diameter (full) 2.4 in 60 mm
    Max Tool Diameter (adjacent empty) 3.1 in 80 mm
    Max Tool Length (from gage line) 8 in 200 mm
    Max Tool Weight 4.4 lb 2.0 kg
    Tool-to-Tool (avg) 1.50 s 1.50 s
    Chip-to-Chip (avg) 2.50 s 2.50 s
    General S.A.E METRIC
    Coolant Capacity 40 gal 151 L
    Air Requirements S.A.E METRIC
    Air Required† 4 scfm @ 100 psi 113 L/min @ 6.9 bar
    Inline Air Hose 3/8 in 3/8 in
    Coupler (Air) 3/8 in 3/8 in
    Air Pressure Min 80 psi 5.5 bar
    Electrical Specification S.A.E METRIC
    Spindle Speed 10000 rpm 10000 rpm
    Drive System Inline Direct-Drive Inline Direct-Drive
    Spindle Power 15.0 hp 11.2 kW
    Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
    Full Load Amps (3 Phase) - Low 40 A 40 A
    Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
    Full Load Amps (3 Phase) - High* 20 A 20 A
    Dimensions - Shipping S.A.E METRIC
    Domestic Pallet 100.0 in x 79.0 in x 100.0 in 254 cm x 201 cm x 254 cm
    Export Pallet 100.0 in x 79.0 in x 100.0 in 254 cm x 201 cm x 254 cm
    Weight 7040 lb 3402.0 kg

    *Haas machines are designed to operate on 220 VAC (200-240 VAC) power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Machines, CL-1, CM-1, and SR Series routers. This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.

    Haas machines destined for Europe and the UK are configured with an internal high-voltage non-isolated transformer to operate on 400 VAC, except the Desktop Machines, CL-1, CM-1, and SR Series routers.

    ATTENTION! Optional high-performance spindles may have a higher power requirement than the standard spindle. However, if the spindle horsepower (kW) does not change, the power requirement remains the same. Verify the power requirement before running power for your machine.

    † Air consumption on 40-taper DC Series machines may be higher, when Through-Tool Air Blast (TAB) is activated.



    HAAS ROTARY ROTARY FIT TYPE WARNING
    HA5C POSITIVE FIT
    HA5C-T POSITIVE FIT
    HA5C2 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
    HA5C2-T ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
    HA5C3 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
    HA5C3-T ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
    HA5C4 ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
    HA5C4-T ALTERNATIVE FIT: CAUTION ALTERNATIVE FIT: CAUTION This rotary fits this particular machine, but may require alternative fixturing for proper positioning, such as a sub-plate or alternate T-slot.
    HA5CS POSITIVE FIT
    HRT100 POSITIVE FIT
    HRT160 POSITIVE FIT
    HRT160SP POSITIVE FIT
    HRT160SS POSITIVE FIT
    HRT210 POSITIVE FIT
    HRT210HS POSITIVE FIT
    HRT210HT POSITIVE FIT
    HRT210SP POSITIVE FIT
    HRT210SS POSITIVE FIT
    HRTA5 POSITIVE FIT
    HRTA6 POSITIVE FIT
    T5C POSITIVE FIT
    TH240 POSITIVE FIT
    TRT70 POSITIVE FIT
